Product description
Product Overview

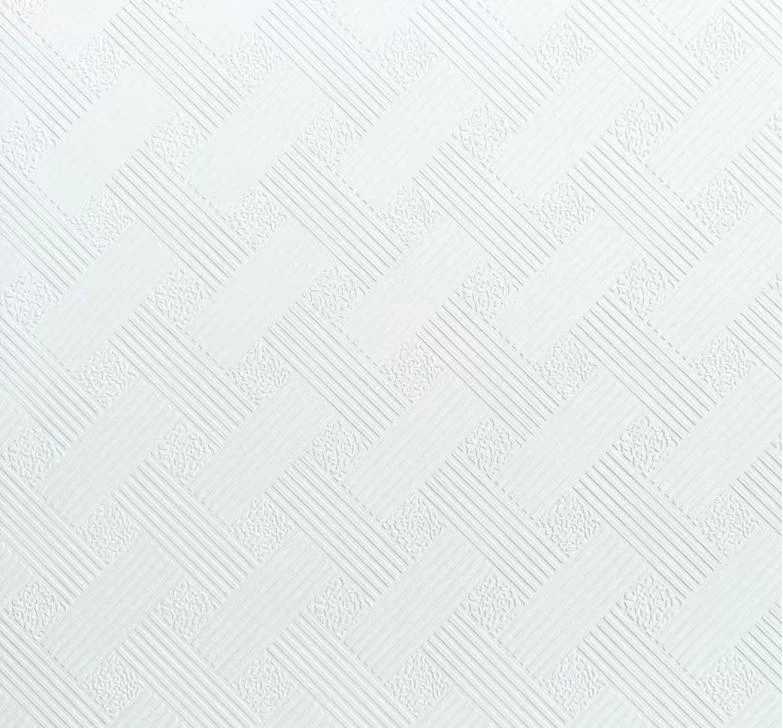

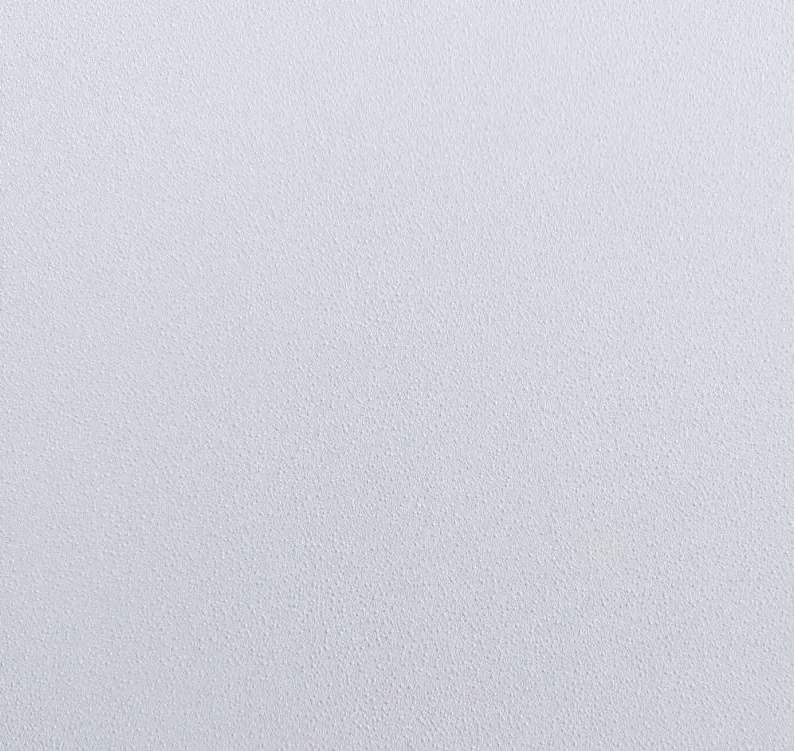

The PVC three-proof cleanroom decorative panel uses premium Taishan gypsum board as its base material. Multiple surface finishes are available to meet different interior design requirements.
The panel provides excellent sag resistance, dimensional stability, fire resistance and water resistance. Easy to install and maintain, it is widely used in public, residential and commercial buildings.
Key Features
- Fire and water resistant
- Dustproof and insect resistant
- Durable and dimensionally stable
- Environmentally friendly and safe
- Multiple decorative surface finishes
- Easy and efficient installation
Applications
Suitable for suspended ceilings in hotels, office buildings, schools, colleges, residential-commercial buildings and other public or commercial spaces.
Specifications
| Item | Specification |
|---|---|
| Base Material | Gypsum board |
| Surface Treatment | PVC film, latex paint or aluminum foil backing |
| Thickness | 8 mm |
| Nominal Size | 600 × 600 mm (Metric) / 2 × 2 ft (Imperial) |
| Actual Size | 595 × 595 mm (Metric) / 603 × 603 mm (Imperial) |
| Dimensional Tolerance | Length: ±2.0 mm; Width: ±2.0 mm; Thickness: ≤0.5 mm |
| Weight per Unit Area | <7.0 kg/m² |
| Breaking Load | ≥150 N |
| Moisture Content | <1% |
| Noise Reduction Coefficient | NRC ≥0.25 |
| Fire Performance | Class A, non-combustible |
| Recommended Relative Humidity | ≤90% |
Applicable Standard
JC/T 997-2006 (2017): Decorative Paper-Faced Gypsum Boards
